Vermiculite Fire Spray Contractor in Sydney

Vermiculite fire spray to structural steel, fire-rated ducts, concrete slabs and carpark soffits, up to FRL 240. Our own spray crew, tested systems, thickness checked on every member and an installation certificate at handover.

What is vermiculite fire spray?

Vermiculite fire spray is a lightweight, cementitious fireproofing coating sprayed directly onto steel, concrete and ductwork. In a fire it acts as a thermal barrier: it slows the transfer of heat into the member so structural steel keeps its strength, and a duct keeps its integrity, for the fire resistance level (FRL) the building needs.

Because it goes on fast over large areas and builds thickness easily, fire spray is usually the most economical way to fire rate steel that sits above ceilings, in voids, plant rooms and basements, and it reaches higher FRLs than thin-film intumescent paint. Ary Fire is a specialist passive fire contractor based in Cronulla. We do the spraying ourselves, from the take-off through to the certificate.

Our vermiculite fire spray services

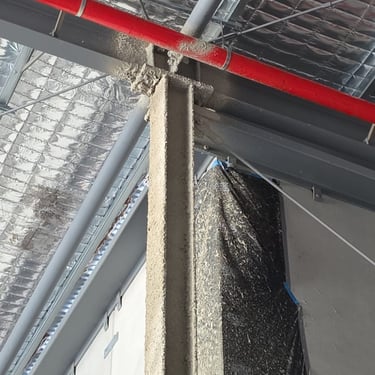

Structural steel beams and columns

Fire spray to universal beams, columns, welded sections and bracing on new builds, fit-outs and refurbishments. Thickness is set for each section from the tested system's data, so every member meets the FRL in your fire engineering report or BCA design.

Fire-rated ductwork

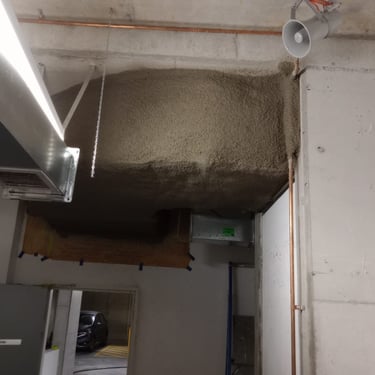

Vermiculite spray to mechanical, smoke exhaust and kitchen exhaust ducts, worked around hangers, access panels and the services that share the riser or plant room. Typically up to 120 minutes.

Concrete slabs and carpark soffits

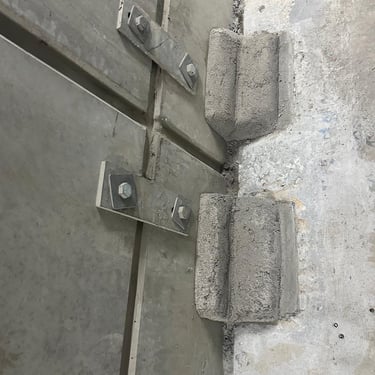

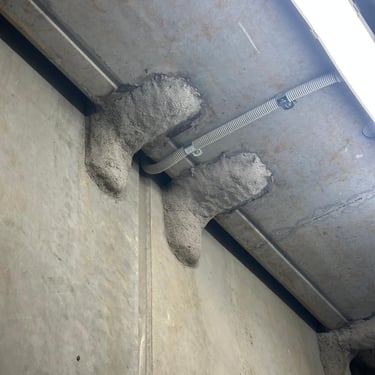

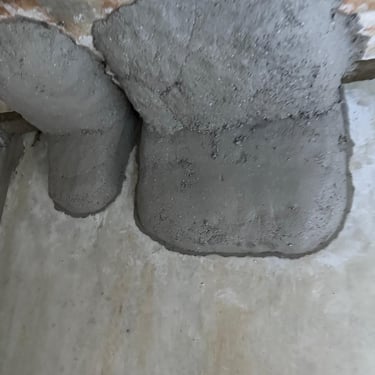

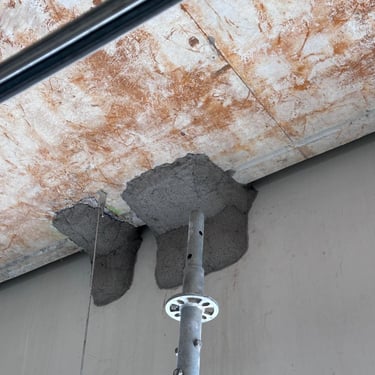

Spray to slab soffits and transfer beams where extra cover is needed to reach the required FRL, common in residential and commercial basements and carparks.

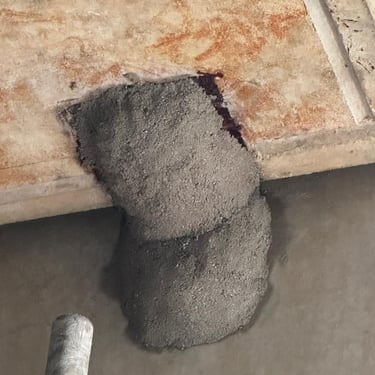

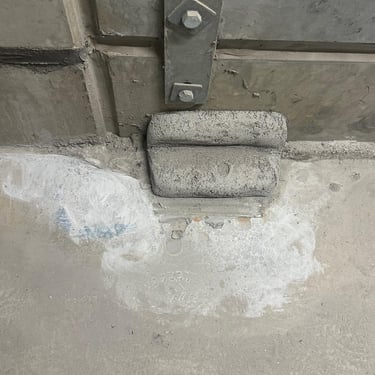

Repairs, patching and make-good

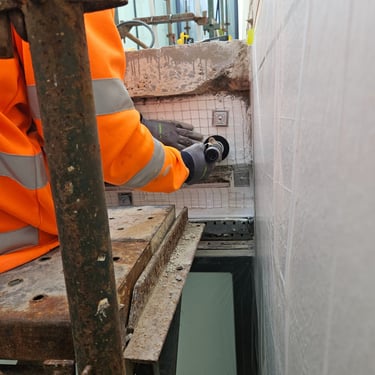

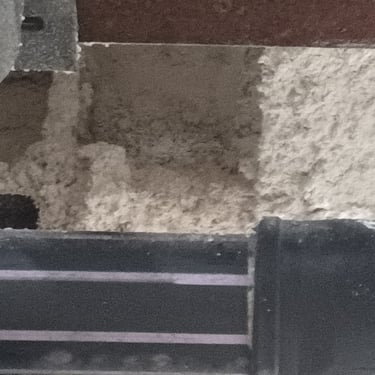

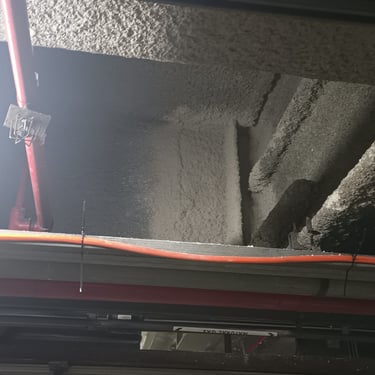

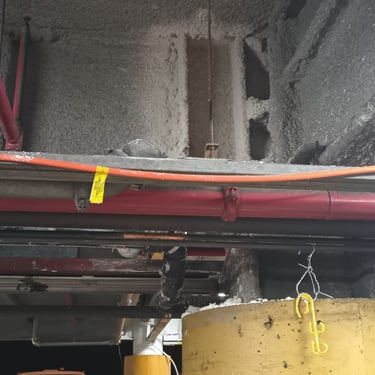

Later trades often knock existing fire spray off steel and ducts. We cut back loose material, re-spray with a compatible system to the required thickness and certify the repaired areas so the fire rating is restored before handover.

Take-offs from your drawings

Send structural drawings and we measure every member, work out surface areas and section factors, and price the job on real quantities rather than a guess.

Systems we spray

SystemsCafco 300, Perlifoc HP Eco+, Monokote MK-6
FRL rangeUp to 240 minutes on steel, typically up to 120 minutes on ducts
SubstratesStructural steel, ductwork, concrete slabs and soffits
StandardsTested to AS 1530.4, steel design to AS 4100, compliance with the NCC
HandoverThickness records and installation certificate for the certifier and passive fire register

How a fire spray job runs

  • Assessment: we confirm the FRL, section sizes, exposure and site access from your drawings or a site visit.
  • Specification: we select the tested system and set the dry thickness for each section factor.

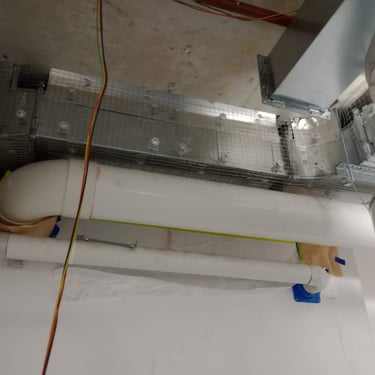

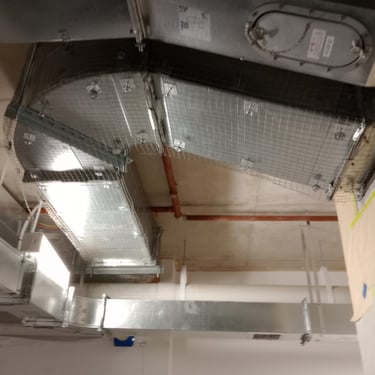

  • Preparation: surfaces are cleaned and primed or keyed where the system needs it, and surrounding work is masked and protected.
  • Application: our crew sprays to thickness, checking thickness and density as we go.
  • Certification: we inspect, record readings and issue an installation certificate stating the product, system, FRL and areas treated.

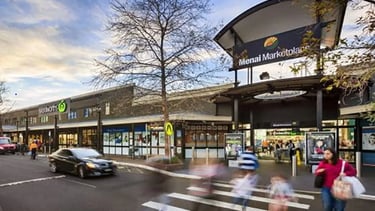

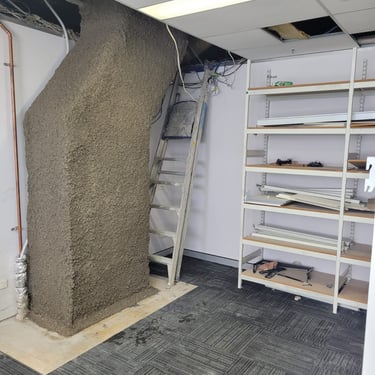

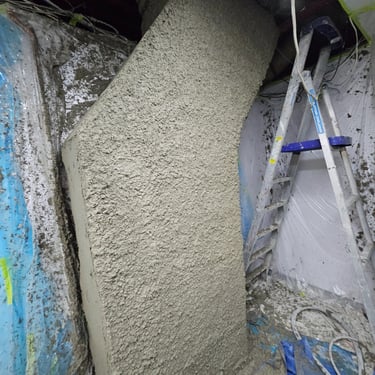

Latest job: fire-rated duct, Menai

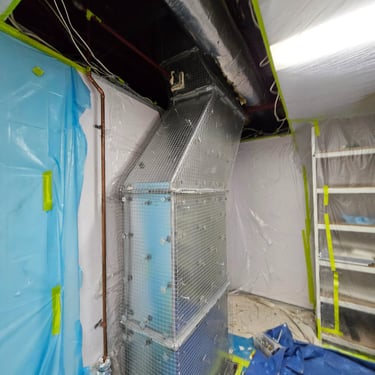

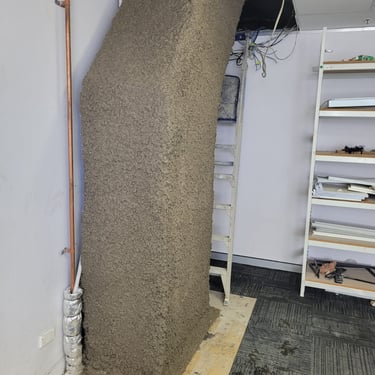

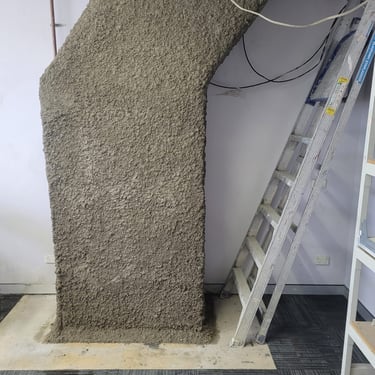

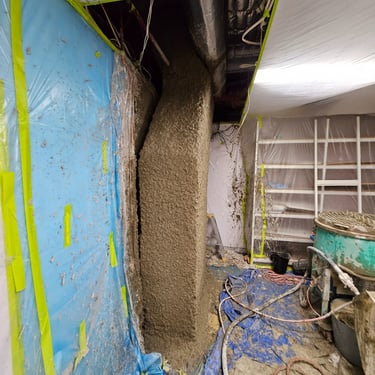

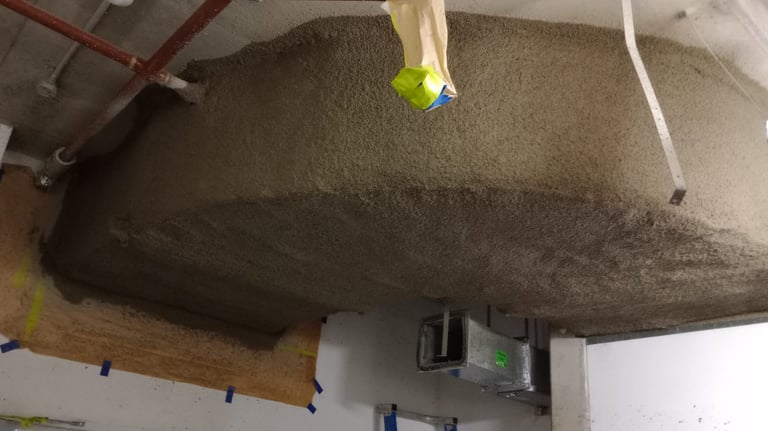

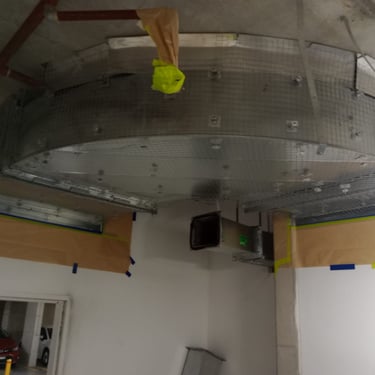

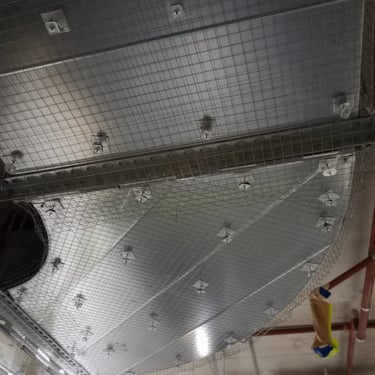

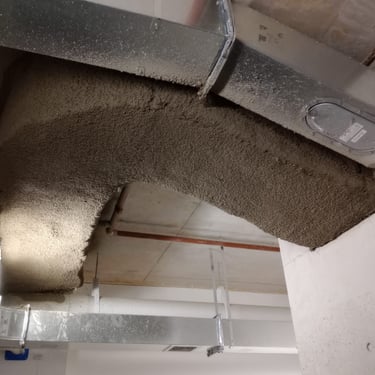

Vermiculite fire spray to a fire-rated duct running floor to ceiling through an office tenancy in Menai, in the Sutherland Shire. Our crew masked and sealed off the room, set up the mixer and spray rig on site, sprayed the duct and its offset full height into the ceiling void, then cleaned up for the next trade.

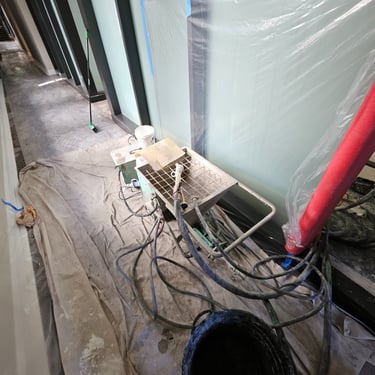

Our vermiculite mixer and spray rig set up on site in Menai

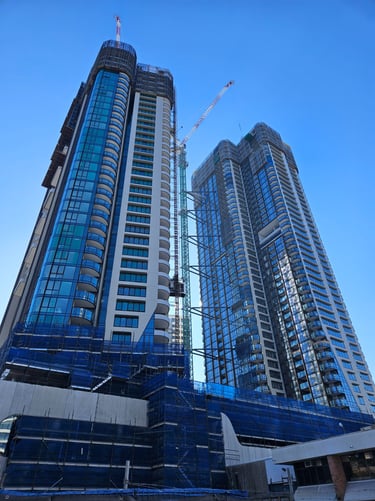

Recent vermiculite fire spray projects

A few of the fire spray jobs our crew has completed. See the full projects page for more.

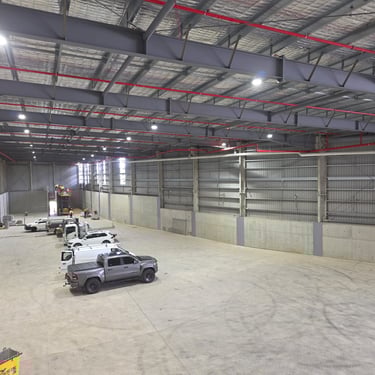

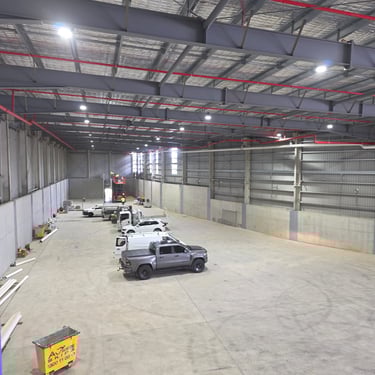

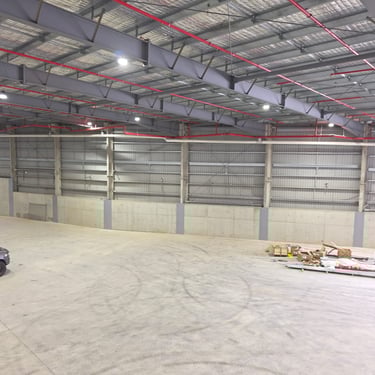

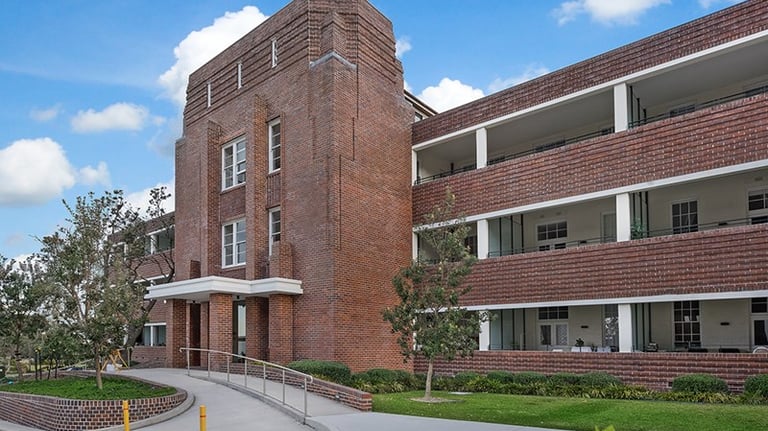

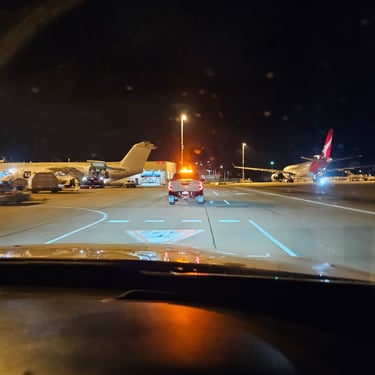

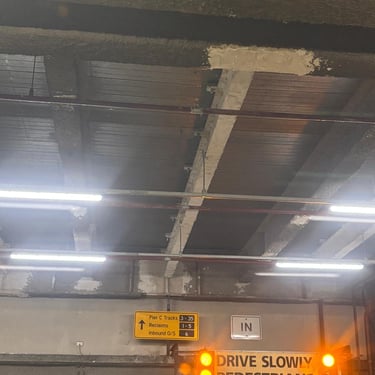

Other fire spray work includes Charlingfield Aged Care (exposed structural steel, completed around other trades), Sydney Airport in Mascot (vermiculite and intumescent to steel beams), Project NSW Remediate at Little Bay (steel beams to the specified FRL) a fire-rated duct repair in Silverwater and a fire-rated duct in Menai.

Fire spray or intumescent paint?

Fire spray is the better choice for hidden steel, ducts, soffits and high FRLs. Intumescent paint is better for exposed steel where the finish matters, because it looks like normal paint. Many jobs use both. We apply both systems, so we will recommend the one that suits your steel rather than the one we happen to sell. Read our guide on intumescent paint vs vermiculite fire spray, or see our intumescent coating service.

Why builders use Ary Fire for fire spray

  • Specialist passive fire contractor: we apply the fire spray, we are not a product supplier.
  • Tested and assessed systems matched to your fire engineering report.
  • Take-offs done from your drawings, so quotes are based on measured quantities.
  • Thickness checked and recorded on every area treated.
  • Installation certificate for your certifier and passive fire register.
  • Fire stopping and penetration sealing available on the same job, see passive fire.

Areas we cover

We spray across Sydney, including the CBD, Sutherland Shire, Parramatta, Penrith, Campbelltown, Blacktown and Liverpool, plus regional NSW, Canberra and Melbourne. Local pages: vermiculite spray Parramatta and passive fire Sutherland Shire.

Common questions

What is vermiculite fire spray?

Vermiculite fire spray is a lightweight cementitious coating sprayed onto steel, concrete and ductwork. It insulates the member so heat transfers into it slowly during a fire, keeping the structure load-bearing or the duct intact for the required fire resistance period.

What FRL can vermiculite fire spray achieve?

Up to 240 minutes on structural steel, depending on the section size and the tested system, and typically up to 120 minutes on ductwork. The required thickness is set for each member from the system's assessment data.

Vermiculite fire spray or intumescent paint?

Fire spray is usually the most cost-effective choice for steel hidden above ceilings, in voids and plant rooms, for carpark soffits, for ducts and for high FRLs. Intumescent paint suits exposed steel where appearance matters. We do both and will tell you which suits your job.

Can you repair fire spray damaged by other trades?

Yes. Electricians, plumbers and mechanical trades regularly damage existing fire spray. We cut back loose material, re-spray with a compatible system to the required thickness and certify the repaired areas.

Do you provide an installation certificate?

Yes. Every job is handed over with an installation certificate stating the product, tested system, FRL and areas treated, ready for your certifier and passive fire register.

How much does vermiculite fire spray cost?

It depends on the surface area, the thickness needed for the FRL, access and whether it is new work or a repair. Send your drawings or a few photos and we will come back with a take-off and a fixed price.

Need steel or ducts fire sprayed?

Send your drawings or a few photos. We'll come back with a take-off, a fixed quote and an installation certificate at handover.
